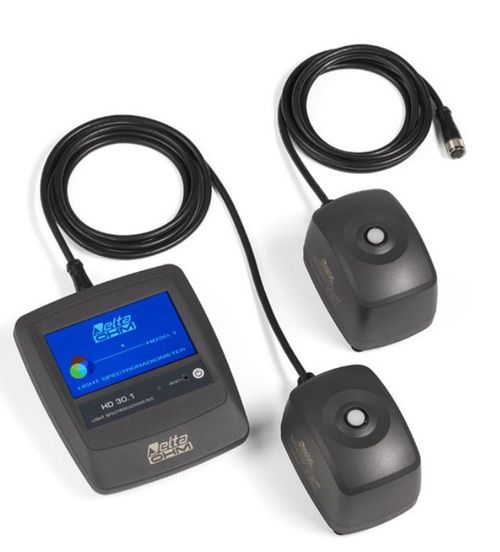

Spectroradiometer

Model Number

HD30.1 / HD30.S1 / HD30.S2

Price

Standard Lead Time

3 weeks

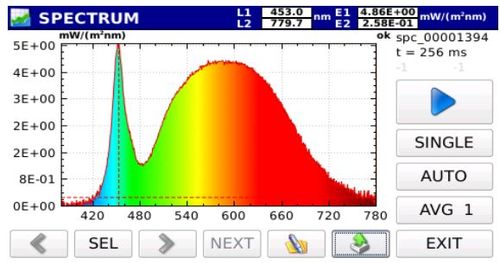

Spectral analysis of light in the visible and ultraviolet range.

Large easy to use color touch screen and included softare package.

Photo-colorimetric quantities (HD30.S1 probe):

Illuminance [lux], Correlated Color Temperature CCT [K], Trichromatic Coordinates [x,y] (CIE 1931) or [u’,v’](CIE1978), CRI (color rendering index, R1…R14, Ra) , PAR [µmolphot/sm2]

Radiometric quantities (HD30.S2 probe):

UVA Irradiance (W/m2), UVB Irradiance (W/m2) and UVC Irradiance (W/m2) - per wavelength

Request A Quote

Ask A Question

Key Specifications

Sensor Type

CCD linear (2048 elements)

Spectral Field

380 - 790nm (HD30.S1) | 220nm - 400nm (HD30.S2)

Wavelength Accuracy

0.3nm (reproducibility 0.1nm)

Diffused light

< 0.03%

Type of Measurement

Single: single acquisition with data backup - Ongoing: continuous acquisition with data backup - Monitor: continuous acquisition without saving data - Logging: acquisition at time intervals (from 3min to 60min) with data backup

Dimension of the Optical Input

Φ 11.8 mm

Cosine Correction

3mm opaline quartz diffuser (HD30.S1) | 2mm opaline quartz diffuser (HD30.S2)

Calibration

Halogen Lamp (HD30.S1) | Deuterium Lamp (HD30.S2)

Uncertainty

See data sheet

Embedded Operating System

Linux

Download Datasheet
