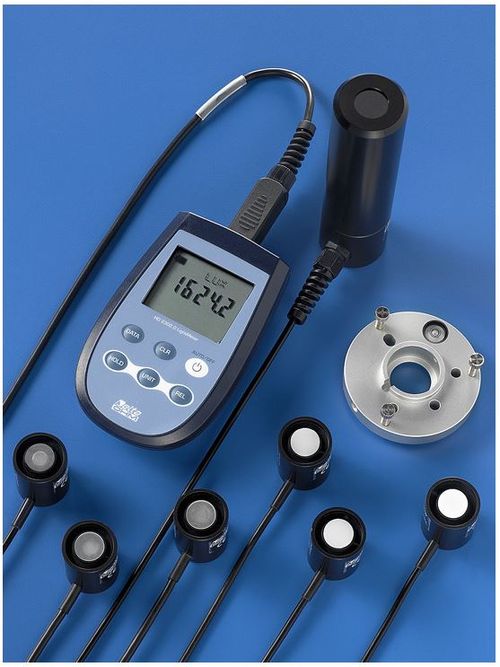

Portable Luxmeter

The HD2302.0 is a simple handheld instrument with a large display. It measures illuminance, luminance, PAR and irradiance using a wide variety of probes:

Photometric for illuminance and luminance.

Quantum radiometric for photon flow.

Radiometric for spectral ranges: UVA, UVB, UVC, and UV-BC

Radiometric for EFFECTIVE IRRADIANCE.

Combined Illuminance (lux) - Irradiance (W/m^2) - UVA spectral range.

Combined Total Effective Irradiance weighted according to the UV action curve.

Global Solar Irradiance pyranometer.

‍

Probes:

• LP471PHOT: Illuminance, 0.1 lux to 200·103 lux.
• LP471LUM2: Illuminance, 1 cd/m2 to 2000·103 cd/m2
• LP471PAR: Photon Flow PAR, 0.1 μmol m-²s-1 to 10·10³ μmol m-²s-¹
• LP471PAR02: Photon Flow PAR, 0.1 μmol m-²s-1 to 10·10³ μmol m-²s-¹.
• LP471RAD: Irradiance 400 to 1050nm, 1.0·10-3 W/m²…2000 W/m²
• LP471UVA: Irradiance 315 to 400nm, 1.0·10-3 W/m² … 2000 W/m²
• LP471UVB: Irradiance 280 to 315nm, 1.0·10-3 W/m² … 2000 W/m²
• LP471UVC: Irradiance 220 to 280nm, 1.0·10-3 W/m² … 2000 W/m²
• LP471BLUE: Effective Irradiance 380 to 550um (blue light), 1.0·10-3 W/m² to 2000 W/m²
• LP471P-A: Combined Illuminance and UVA Irradiance, 315 to 400nm, 0.3 lux to 200·10³ lux &  1.0·10-3 W/m² to 2000 W/m²
• LP471A-UVeff: Total Effective Irradiance, UV-CB and UVA 250 to 400nm, see data sheet for range.
• LP471SILICON-PYRA: Global Solar Irradiance, 400 to 1100nm, 0…2000 W/m²
• LP471PYRA: - LPPYRA03  Spectrally Flat Class C (Second Class) pyranometer; LPPYRA02 is a Spectrally Flat Class B (First Class) pyranometer and LPPYRA10 is a Spectrally Flat Class A (Secondary Standard) pyranometer.

Accessories:

• LPBL: Probe holder with leveling device
• LPBL3: Probe holder for mounting on a wall, adjustable angle.

‍

‍
