Vibration Analysis / Accelerometers
IEPE Triaxial Whole Body Accelerometer – 1000 mV/g
HD2030MSP accelerometer is suitable for the measurement of vibrations transmitted to occupants of passenger and work vehicles by the vehicles seats.
The mechanical design is compliant with the requirements of ISO 10326-1. The seat pad consists of a thin circular rubber pad housing a low profile tri-axial accelerometer.
Request A Quote
Ask A Question
Key Specifications
Sensitivity
1000mV/g MEMS inertial sensor
Range
±5 g pk
Weight
410 grams

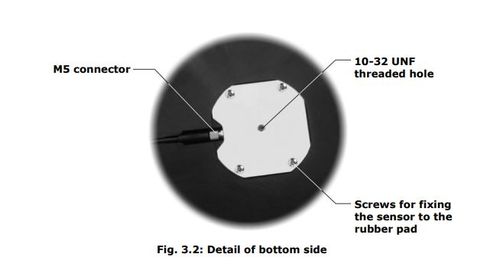

Mouting
10-32 threaded hole
Connector
M5 4 pin
Cable (ordered separately)
HD2030CAB3-XXM
Compatible Analyzers
HD2030 or HD2070
Available Accessories
Available Accessories
Request A Quote
Ask A Question
Calibration and service is available for this item.
Click here to request an RMA
