Pressure
Handheld Manometer Thermometer
P/N: HD2114.0: ±20mbar built-in sensor + external temperature
P/N: HD2114.2: same as above but with data logging
P/N: Hd2134.0: ±200mbar built-in sensor + external temperature
P/N: Hd2134.2: same as above but with data logging
P/N HD2164.0: ±2,000mbar built-in sensor + external temperature
P/N HD2164.2: same as above but with data logging
P/N: HD2114B.0: 600 to 1100mbar built in barometric pressure sensor + external temperature sensor
Request A Quote
Ask A Question
Key Specifications
Pressure Range (Resolution)
±20 mbar ( 0.005 mbar ) | ±200 mbar ( 0.01 mbar ) | ±2000 mbar ( 0.1 mbar ) | 600..1100 mbar ( 0.1 mbar )
Pressure Range (Accuracy)
±20 mbar ( ±0.3% f.s. ) | ±200 & ±2000 mbar ±(0.1%f.s.+0.1% measurement) | 600..1100 mbar ( ±0.3 mbar )
Pressure Connection
Barb fitting for 5mm I.D. with screw cap
Fluid Contact
non-corrosive air and gas
Measuring Units
°C - °F - Pa - hPa - kPa - mbar - bar- atm mmHg - mmH2 O - kgf/cm2 - PSI - inchHg
Software
Included in the scope of supply. Allows for viewing the data in a chart of graph in realtime during logging.
Temperature Range
Pt100 & Pt1000: -200C to +650C
Communication

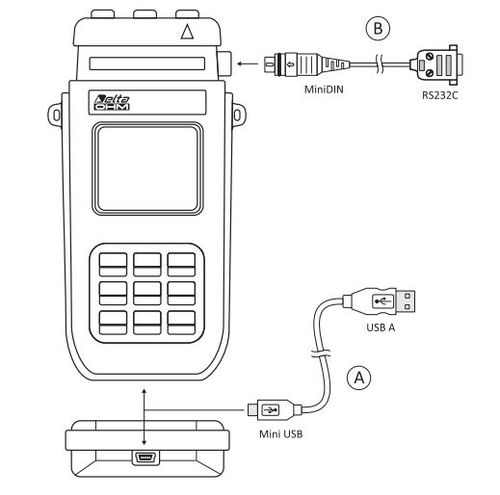

Through the included software package or query via RS232C
Available Accessories
Available Accessories
Request A Quote
Ask A Question
Calibration and service is available for this item.
Click here to request an RMA
