Clean Room Particulate Transmitter
Air Quality / Microclimate

Clean Room Particulate Transmitter

Model Number
PMsenseCR
Price

$

Standard Lead Time
3 weeks

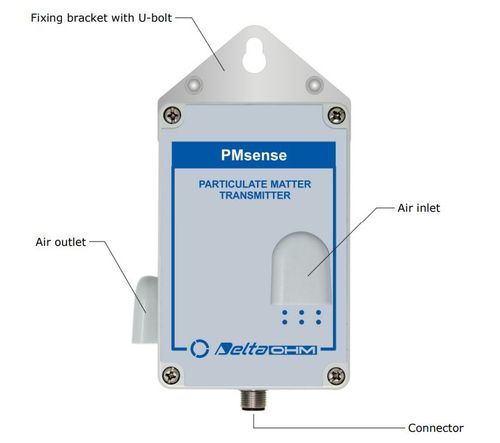

Particulate Matter (PM) transmitter specifically designed for clean room environments as required by ISO standard 14644.

The transmitter is available with analog or digital outputs (or both).

Particulates of sizes: > 0.3 μm ; > 0.5 μm ; > 1 μm ; > 2.5 μm ; > 5 μm.

Also available with an integrated CO2 sensor, 0-5000ppm.

Request A Quote
Ask A Question

Key Specifications

Particulate Measuring Principle
Laser scattering
Particle Size Detection Range
∅ 0.3…10 µm
Measuring Range
0…1000 µg/m3 (for each pollutant)
Sensor Lifetime
5 years approx when set to 5min cycles (default) | > 10,000 hours in continuous mode (1hz).
Temperature Drift
< 0.01 µg/m3 /°C
CO2 Measuring Principle
Double wavelength NDIR
CO2 Range
0 - 5,000ppm
CO2 Accuracy
±(50 ppm+3% of measurement)
Outputs
RS485 with Modbus-RTU | 4-20mA (0-10Vdc upon special request)
Power Supply (Consumption)
7 - 30 Vdc ( 25mA @ 24Vdc during measurment, 4mA in standby)

Available Accessories

Available Accessories

No accessories are set for this product.
No accessories are currently available for this item.
Request A Quote
Ask A Question
service icon
Calibration and service is available for this item.
Click here to request an RMA
Back to All Products
