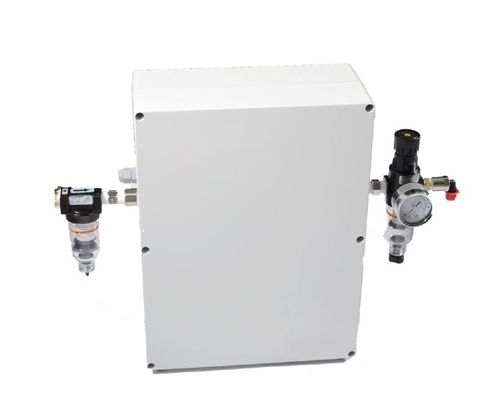

TOC Carrier Gas Ultra Dry Air Generator

nitrogen generator

Features

  • Clean and dry CO2 free air
  • Ideal for TOC and FTIR spectrometers
  • Removes CO2 to <1 ppm
  • Removes Water Vapour
  • Integrated buffer tank
  • Integrated compressor (option )
  • PSA (Pressure Swing Adsorption) technology
  • Silent Operation
  • Save money reduce waste
  • Generate only what you need
  • Designed for easy of maintenance
  • All you need service packs available
  • 2 year warranty

TOC Carrier Gas Ultra Pure Air Generator

The Total Organic Carbon (TOC) Gas Generator is an ultra-dry air generating system widely used throughout the laboratory and industrial sectors. The TitanN2 TOC generator is widely renowned as an industry staple and continues to remain one of the most popular products in our range. This TOC gas generator removes the CO2 and the moisture content from compressed air streams. It purifies an existing compressed air supply in carrier or combustion gas for a TOC analyser, eliminating the requirement, expense and inconvenience of a nitrogen or oxygen gas cylinder system.

The optional "plug and play" configuration integrates an air compressor into the same housing as the generator. This simplifies installation so that essentially all you have to do is hook up to your instrument supply line, plug in the generator, switch on and your ready to start work.

Specifications

TOC Carrier Gas Ultra Pure Air Generator TOC GAS
Purity < than 1ppm CO2
Outlet Pressure 70 -120 psi
Flow Rate 9 litre/min
Dew Point -70°C
Dimensions 342 x 234 x 123 mm
Weight Kg 5
Power Supply 120VAC 50Hz or
230 VAC 60Hz

Ordering Information

Model Description Price
TOC GAS TOC Carrier gas CO2 Purge Generator with cabinet & Filters 9 l/min Call for quote
or use the Inquiry Form
TOC GASC TOC Carrier gas CO2 Purge Generator with cabinet & Filters 9 l/min with integrated compressor
